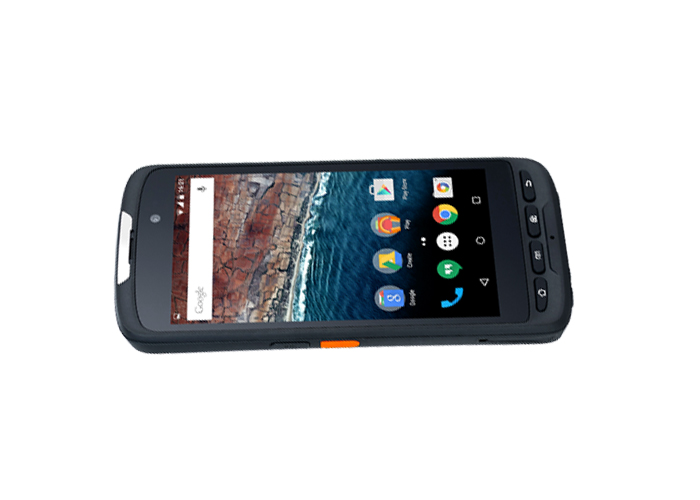

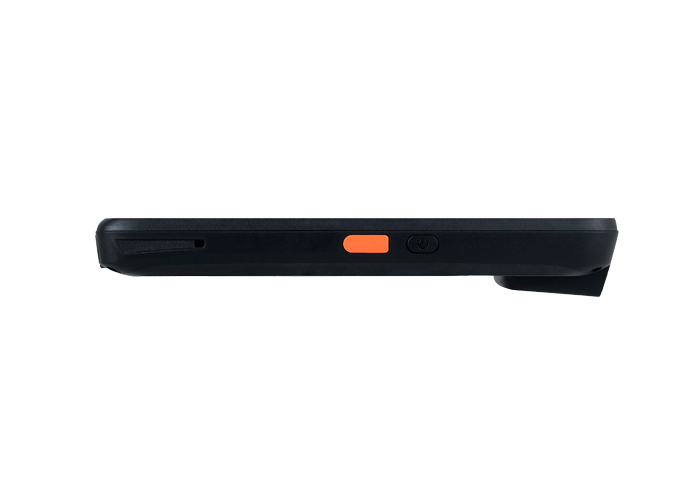

Android Industrial Pda Handheld Computer With Barcode Scanner Handheld Terminal BH52
Standard accessories hand strap,wall charger etc
Scenario warehouse management,logistic,retail etc
5.0 inch IP65 1280*800 display
◪ Corning Gorilla tempered glass and Double injection mould
◪ Quad core Android 8.1 O.S 2GB RAM and 16GB ROM
◪ Dual band WIFI,Support GPS and GLONASS navigation
◪ Front 2.0 M and rear 8.0M camera
◪ 4000mah battery and pistol grip with trigger
◪ 1D/2D Honeywell N3680 Barcode scanner
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld Terminal |
| Dimension | 155.8*72*25 |
| Weight | Device unit: g ,Unit with giftbox and standard accessories:g,Docking:g |
| Device Color | black+black color |
| LCD | Screen Size | 5.0 inch 16:9 |
| Resolution | 720*1280 IPS |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,G+F,,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwrite |
| Camera | Front | Front2.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Earphone | Built-in | built inx 1 |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4000mAh |
| Endurance | 7hrs(default50%volumn,default 200lumens brightness,play1080P video) |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | MT8735b(4core) |
| Speed | 1.1GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Compass | Built-in | electronic compass |
| G_sensor | Built-in | Gravity acceleration sensor |
| Light sensor | Built-in | yes |
| range sensor | Built-in | yes |
| led indicate | Built-in | In charging led |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission distance:10m |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GLONASS,QZSS,GPS;Capture sensitivity::-160 dBm；Cool Start Time:<60 seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz (configurable) |
| NFC | optional | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
MIFARE reader encryption mechanism (MIFARE 1K/4K)
Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open tag,
ISO/IEC 14443-4)
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols 106 kbit/s to 424 kbit/s
B’ and MIFARE card emulation
|
| 1D barcode scanner | Optional | Honeywell N4313 |
| 2D barcode scanner | Optional | Zebra 4710 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| USB2.0 interface | data transmission | Micr usb2.0*1 OTG |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| barcode | barcode | barcode *3 |
| POGO PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing battery and devices |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 8.1 |
| Software Configuration |
| Type | Details | Description |
| Certificate System | IP65 | IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min；f.test time:at least 3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
FAQ:
Q:Do you have any option accessories?
A:Yes,we have docking station for charging and pistol grip for long time working
Q: What is your guarantee period?
A: SMDT provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor.professional engineer follow after service.
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
Q:Where is your factory located?how to visit?
A:we are located in Shenzhen city,guangdong province China.Welcome to visit us any working days
Q: Do you provide OEM/ODM service?
A:Yes,we familiar with whole process and we can support
